Why Choose Tilt & Turn Windows for Your Home

Australia’s climate varies from the tropical humidity of Queensland to the Mediterranean conditions in parts of Western Australia and the cooler southern regions. Proline Aluminum’s tilt and turn windows provide versatile dual opening modes. In rainy weather, the window tilts inward for ventilation without letting water in, preventing moisture and mold. In milder conditions, the sash swings fully inward to increase fresh air and improve indoor airflow.

Whether for urban apartments in Brisbane and Sydney or luxury homes across Queensland, tilt and turn windows are popular with developers and architects for their security, energy efficiency, and clean design. They are ideal for energy-efficient and sustainable projects, offering excellent airtightness and insulation to enhance comfort.

Tilt & turn windows advantages

Ventilation: When the window is in the tilted position, the opening at the top allows fresh air to flow into the room from above, creating a natural downward circulation. This design prevents direct drafts on occupants, enhancing comfort while ensuring a consistent supply of fresh air. Such effective airflow contributes to improved indoor air quality, making these windows an excellent choice for maintaining a pleasant living environment.

Safety: The tilt and turn mechanism also enhances security by reducing the risk of break-ins, as the windows can be locked in various positions. Additionally, the design minimizes the danger of falls from height, making it suitable for high-rise buildings or elevated locations. The ability to keep the window partially open while maintaining a secure lock position allows homeowners to benefit from fresh air without compromising safety, thus making these windows ideal for both residential and commercial applications.

Proline Tilt & Turn Window System

01 Aesthetic Structure

The flush design of the interior and exterior frames not only enhances the overall aesthetics but also gives the window a more modern appearance.

Proline Tilt & Turn Window System excels in several areas through meticulous attention to detail and comprehensive upgrades.

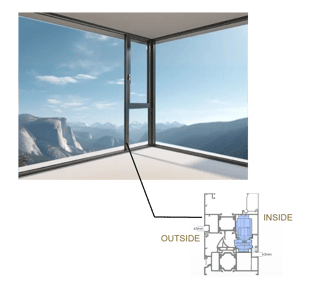

02 Sealing Structure

Featuring a three-seal design, the window incorporates polyurethane foam insulation in the thermal cavity and a robust central seal that is integrally welded. This results in water tightness rated at level 6, air tightness at level 8, and significantly improved thermal insulation. Users can rest assured that issues like wind resistance and water leakage are effectively addressed, ensuring a five-star level of comfort and quietude.

03 Drainage System

The hidden drainage hole cover design is flush with the frame, enhancing the overall aesthetic. This, combined with a windproof drainage cover and specialized waterproofing techniques, effectively resolves any water accumulation issues. Rainwater is directed out, preventing any backflow, making it resilient against severe weather conditions.

04 Hardware Configuration

Hardware is the core of functionality, and the smooth operation and lifespan of the window largely depend on the quality of the hardware system. Proline inward-opening and tilting hardware configuration ensures safety while enhancing the living experience, with exquisite craftsmanship and robust performance.

Concealed hinge configuration

The top hinge is equipped with a sealing reinforcement mechanism to enhance the sealing performance at the corners of the hinge. The load-bearing components of the upper and lower hinges are made from high-quality 304 stainless steel, with the thickness of the main load-bearing component of the lower hinge reaching up to 4mm, ensuring stable strength and reliable safety.

Hinge Opening Angle

0°~175°

Hinge Load Capacity

< 130kg

Inward Tilt Distance

140 mm

Repeated Opening and Closing Test

≥ 25,000

Frame Size Range

Width 490mm to 750mm

Height 600mm to 2000mm

Anti-Theft and Burglary Protection

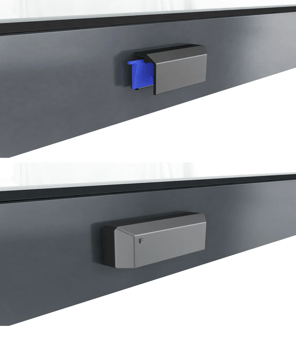

The tilt support mechanism, equipped with an anti-misrotation corner piece and roller anti-burglary locking points combined with a reinforced anti-burglary lock base, effectively enhances security against theft and break-ins.

05 External Configuration

Configuration 1

Laminated Glass Railing Designed with a height of 1.2 meters for stability and safety.

Configuration 2

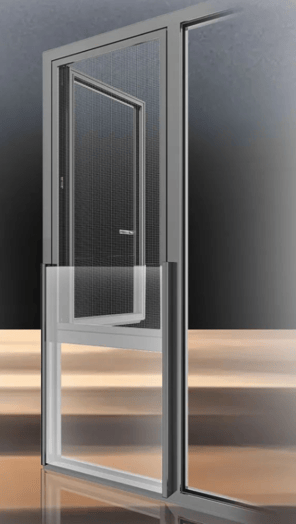

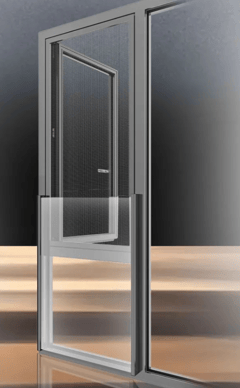

Integrated Screen Window Features dual inward opening design for safety against falls, mosquito protection, and high ventilation.

GET QUOTE

Welcome to inquire for perfect solutions for your construction projects. Proline Aluminum offers a comprehensive product system, including the design and manufacturing of windows & doors, railings & staircases, awnings & pergolas, and metalwork.
